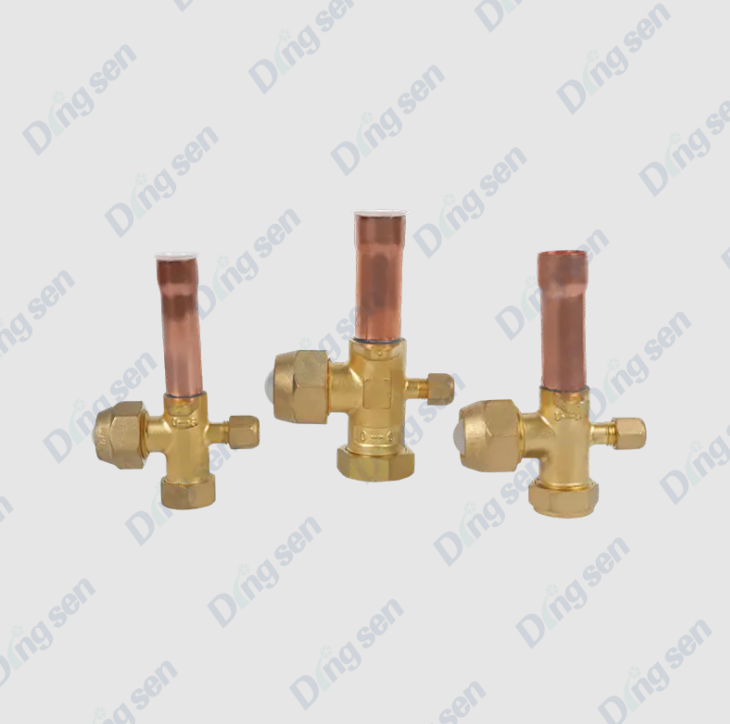

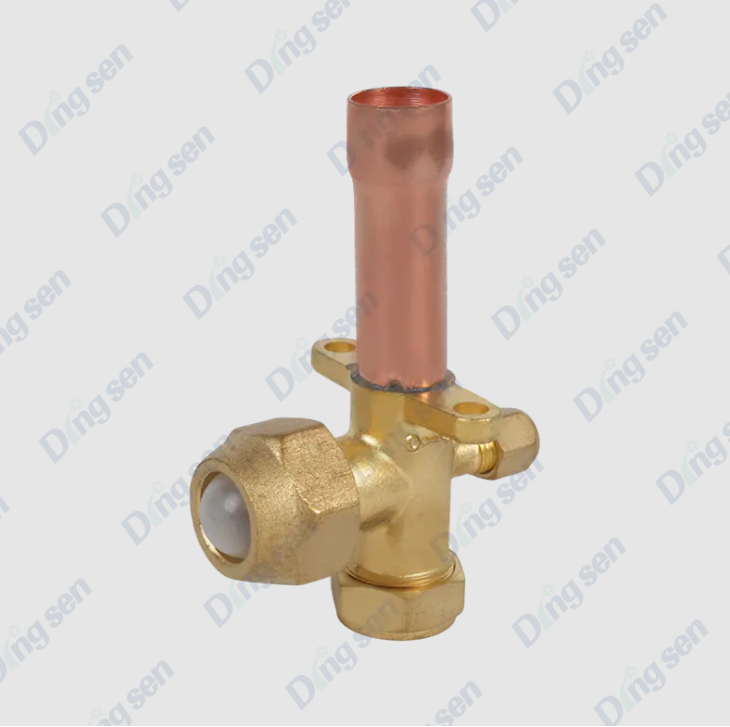

What is an air conditioning three-way valve?

An air conditioning three-way valve, also known as a three-way reversing valve or three-way distribution valve, is a key control component in an air conditioning system. It is used to change the flow direction of refrigerant or chilled/hot water in the piping, realizing the system's cooling, heating, or chilled/hot water distribution functions.

A three-way valve typically consists of a valve body, a valve core, and an actuator. Based on the fluid path, it can be divided into straight-through type and proportional distribution type. In modern central air conditioning, fan coil units, and underfloor heating systems, three-way valves are often used in conjunction with electric actuators or thermostats to achieve automatic control and energy-saving management.

What is the working principle of an air conditioning three-way valve?

An air conditioning three-way valve, also known as a three-way distribution valve or three-way reversing valve, is mainly used to regulate the flow direction of refrigerant or chilled/hot water in an air conditioning system, realizing the switching between cooling and heating functions or the distribution of chilled/hot water. Its working principle mainly relies on the movement of the valve core inside the valve body to change the fluid path.

1. Structural Composition

A three-way valve mainly consists of the following parts:

• Valve Body: Usually made of copper, brass, or stainless steel, with three connection ports: one inlet (usually the system inlet) and two outlets (leading to different circuits or equipment respectively).


• Valve Core: The moving part inside the valve body, which can rotate or slide, used to switch the fluid flow direction.


• Actuator: Includes a manual operating lever or an electric/pneumatic actuator, used to drive the valve core movement to achieve flow direction switching.


• Seals: Such as rubber rings or polytetrafluoroethylene (PTFE) seals, ensuring that the valve does not leak during operation.



2. Operating Modes

Three-way valves can be divided into manual and electric types based on their control method, with slight differences in operating principles:

(1) Manual Three-Way Valve

By rotating the handle, the valve core position is changed, allowing the fluid in the inlet pipe to flow to one of the two outlets or to be proportionally distributed.

The valve core typically has two basic structures:

• L-type valve core: Switches the fluid to a single outlet, achieving an "on/off" or switching function.


• T-type valve core: Allows simultaneous flow through both outlets, distributing the flow according to a certain ratio.



(2) Electric Three-Way Valve

The valve core is driven by an electric actuator and can receive temperature control signals or controller commands to achieve automatic adjustment.

The actuator rotates the valve core, changing the fluid flow direction or distribution ratio.

It can be linked with a temperature control system to achieve load regulation or energy-saving control.

3. Fluid Distribution Principle

Straight-through switching (L-type valve core): When the valve core rotates to a certain angle, the fluid can only flow from the inlet to the designated outlet, and the other outlet is closed.

Proportional Distribution (T-type Valve Core): The rotation angle of the valve core controls the opening size of the two outlets, thereby achieving proportional distribution of hot and cold water to ensure stable system operation.

The valve core position is usually determined by a thermostat, controller, or manual adjustment, allowing for precise flow regulation to achieve comfortable temperature control and energy savings.

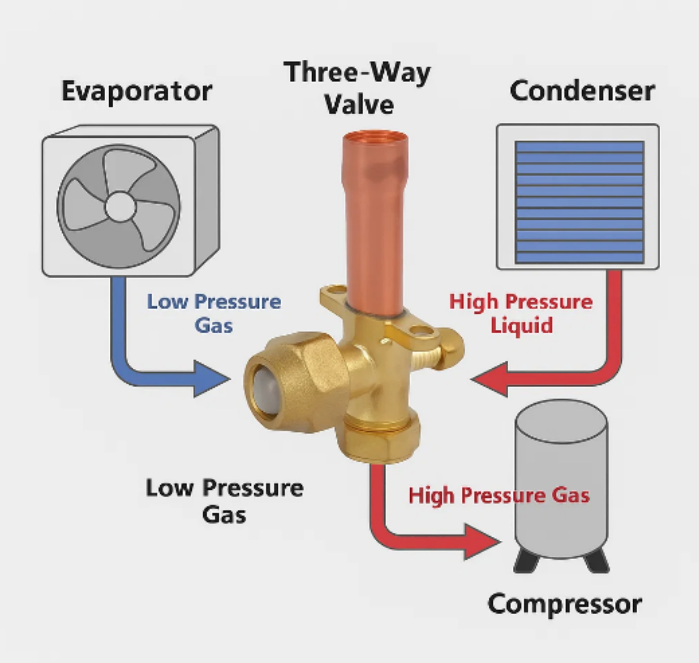

4. Operation Diagram

When the system needs heating, the valve core rotates to open outlet A and close outlet B, allowing hot water or hot refrigerant to flow to the heating equipment.

When the system needs cooling, the valve core rotates to open outlet B and close outlet A, allowing cold water or cold refrigerant to flow to the cooling equipment.

In some proportional distribution applications, the valve core can partially open outlets A and B to achieve hot and cold water mixing or flow distribution.

5. Features and Advantages

Flexible Control: Flow direction can be adjusted manually or automatically to adapt to different load requirements.

Energy Efficiency: Precise flow control through proportional distribution reduces energy waste.

Easy Installation: Compact structure, can be directly connected to the air conditioning system piping.

System protection: Prevents backflow and system impact, ensuring stable equipment operation.

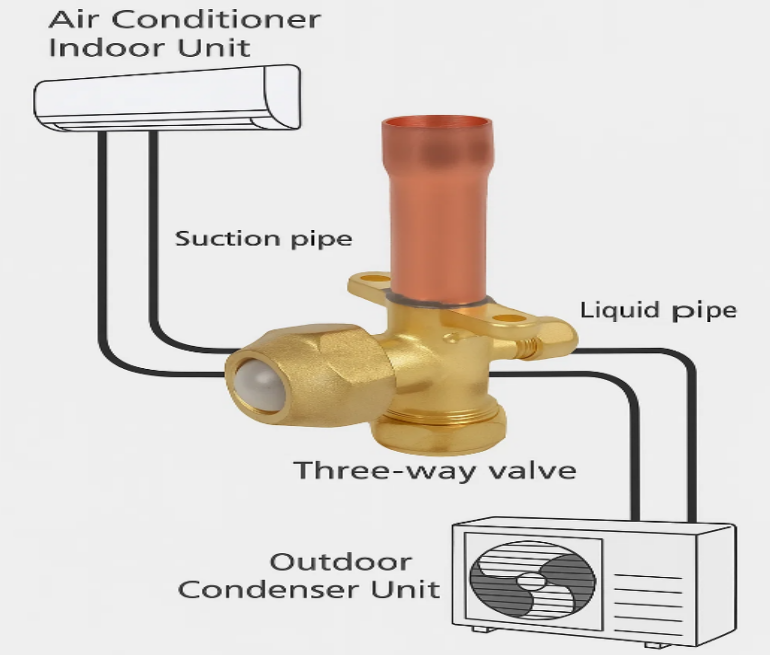

What types of air conditioning systems are air conditioning three-way valves typically used in?

Air conditioning three-way valves are widely used in modern air conditioning systems, primarily to control the flow direction of refrigerant or chilled/hot water, achieving cooling/heating switching, flow distribution, and system load regulation. Their application characteristics vary slightly depending on the system type.

1. Central Air Conditioning Systems

Application Scenarios: Water or air conditioning systems in large commercial buildings, office buildings, hotels, shopping malls, etc.

Functions:

• Regulates the flow of chilled/hot water to different terminal devices (such as fan coil units or air handling units).


• Switches the flow of water or refrigerant during cooling/heating mode switching.


• Works in conjunction with thermostats or building management systems (BMS) to achieve automatic control and energy-saving operation.



Advantages: It can centrally control multiple terminal devices, ensuring system stability and comfort.

2. Fan Coil Unit (FCU) Terminal System

Application Scenarios: Offices, conference rooms, hospital wards, hotel rooms, etc.

Function:

• Controls the flow of cold or hot water into the fan coil unit to regulate indoor temperature.
• With an electric actuator, it can automatically distribute water flow based on room temperature control signals.



Advantages: Allows independent temperature adjustment for each room or area, improving comfort and energy efficiency.

3. Underfloor Heating System (Radiant Floor Heating)

Application Scenarios: Residential buildings, villas, public buildings, and other places using water-based underfloor heating.

Function:

• Distributes hot water to underfloor heating pipes in different zones to achieve zoned heating.
• Combined with a thermostat, it enables automatic indoor temperature regulation.



Advantages: Achieves comfortable room temperature control through precise hot water flow distribution while saving energy.

4. Multi-Split Air Conditioning System (VRF/VRV)

Application Scenarios: Medium to large-sized commercial complexes, office buildings, and other places requiring multi-split air conditioning systems.

Function:

• Controls the flow of refrigerant to the indoor unit or heat recovery unit when switching between cooling and heating modes.
• Works with the system controller to achieve independent temperature control and energy-saving management in multiple zones.



Advantages: Ensures efficient operation of multi-split systems and improves indoor comfort.

5. Heat Pump System

Application Scenarios: Residential or commercial air-source/ground-source heat pump systems.

Function:

• Realizes the switching between heating and cooling modes, changing the flow direction of refrigerant or water.
• Works with automatic control systems to improve energy efficiency.



Advantages: Achieves cooling and heating circulation and energy-saving control through three-way valve switching.

What are the differences between an electric three-way valve and a manual three-way valve?

Air conditioning three-way valves can be divided into manual three-way valves and electric three-way valves based on their control method. They differ significantly in operation, application scenarios, and system performance.

1. Features of a Manual Three-Way Valve

Simple Structure: Typically consists of a valve body and a handle, with no electrical components.

Flexible Operation: Suitable for small systems or scenarios where frequent switching is not required.

Low Cost and Simple Maintenance: Requires no power supply or control signal, resulting in high reliability.

Limitations: Cannot achieve remote control or automated adjustment; adjustment accuracy is affected by human intervention.

2. Features of an Electric Three-Way Valve

Automated Control: Driven by an electric actuator, it can receive signals from a thermostat or system control.

High-Precision Adjustment: Can achieve 0-100% proportional flow distribution, adapting to load changes.

Energy Saving and High Efficiency: Combined with an intelligent control system, it can adjust water flow or refrigerant flow direction according to actual needs, reducing energy consumption.

Installation and Maintenance: Requires power supply and regular actuator inspection; maintenance is more complex than manual valves.

Wide Applications: Suitable for central air conditioning systems, fan coil units, multi-split systems, underfloor heating systems, and other scenarios requiring automatic adjustment.

What parameters should be considered when selecting a three-way valve?

1. Valve Nominal Diameter: The valve nominal diameter is the most basic parameter when selecting a three-way valve, as it determines the matching between the valve and the piping. A diameter that is too small will result in excessive flow resistance, affecting system pressure and the water supply or cooling capacity of terminal equipment; a diameter that is too large will increase cost and space occupation, and may lead to inaccurate flow regulation. Generally, the appropriate valve nominal diameter should be selected based on the system design flow rate and pipe diameter to ensure smooth system operation.

2. Flow Characteristics and Cv Value: The flow capacity of a three-way valve is usually expressed by its Cv value, which is the flow rate per unit pressure. Properly selecting the Cv value ensures that the valve opening matches the system flow rate, thus achieving precise control. For proportional control valves (such as T-type valves), the flow curve should be as stable as possible to ensure uniform distribution of hot and cold water or refrigerant, avoiding temperature fluctuations or instability in the system.

3. Valve Material: The valve material directly affects its corrosion resistance, pressure resistance, and service life. Common valve body materials include copper, brass, stainless steel, and plastics (such as PVC or PP). Copper or brass valves are commonly used in water systems, while stainless steel valves are suitable for systems with high corrosion resistance requirements or chemical media. Plastic valves are suitable for low-temperature or small water systems. Material selection should be based on a reasonable match between the media type, temperature, and system requirements.

4. Pressure Rating: The pressure rating of a three-way valve refers to the maximum working pressure the valve can withstand. When selecting, ensure that the valve's rated pressure is higher than the system's maximum working pressure to avoid leakage or damage. In high-pressure refrigeration systems or industrial air conditioning systems, high-pressure rated valves should be selected to ensure long-term safe operation.

5. Control Method: Three-way valves can be controlled manually or electrically. Manual valves are suitable for small systems or scenarios where frequent adjustments are not required; they are simple to operate and low in cost. Electric valves, driven by an actuator, enable remote control and automated adjustment. They are suitable for central air conditioning, fan coil units, multi-split systems, and underfloor heating systems, and can be used with thermostats or building management systems to improve system comfort and energy efficiency.

Precautions for Installing Three-Way Valves

1. Confirm Valve Model and Specifications: Before installation, carefully verify that the three-way valve's model, diameter, valve core type, material, and control method match the system design requirements. Incorrect models or diameters may result in insufficient flow, increased system pressure loss, or failure to achieve the required flow direction.

2. Check Valve Integrity: Before installation, check the valve for scratches, cracks, damaged seals, or valve core jamming caused during transportation. Replace or repair any abnormalities promptly to prevent leaks or malfunctions during system operation.

3. Keep Pipelines Clean: Before installation, clean the pipes of welding slag, impurities, oil, etc., to prevent foreign objects from entering the valve and causing valve core jamming or poor sealing. For cold or hot water systems, the pipes should be cleaned before valve installation.

4. Installation Direction and Flow Direction Markings: Three-way valves usually have clear flow direction markings (arrows or "A/B" outlet markings). During installation, the valve must be installed correctly according to the designed flow direction. Incorrect installation orientation can cause valves to malfunction, fail to switch or distribute flow properly, and even damage the valve core and seals.

5. Ensure Valve Coaxiality with Pipeline: During installation, ensure the valve's axis is aligned with the pipeline to avoid uneven stress on the valve body. Misalignment or forced connection can damage valve seals, cause valve core jamming, or leaks at the interface.

6. Interface Sealing and Tightening: Threaded Interfaces: Use sealing tape or sealant to avoid overtightening and causing valve body deformation. Flanged Interfaces: Tighten bolts evenly to prevent stress concentration and leakage. Welded Interfaces: Pay attention to welding temperature and location to prevent weld slag from entering the valve.

7. Avoid Direct Stress or Vibration: After installation, avoid direct application of pipeline tension or vibration to the valve body. Use supports or pipeline fasteners to reduce stress and extend valve life.

8. Electrical Connections for Electric Three-Way Valves: For electric three-way valves, wires should be connected correctly according to the instruction manual, ensuring good control signal, power supply voltage, and grounding. After installation, check the actuator's operation to ensure it functions correctly, avoiding wiring errors that could prevent the valve from automatically adjusting.

9. Installation Location and Maintenance Space: The three-way valve should be installed in a location that facilitates operation, inspection, and maintenance. Ensure the valve stem or actuator can operate freely and leave sufficient space for future maintenance or replacement.

10. System Commissioning After Installation: After installation, perform a manual or electric test run on the valve to check its switching, flow distribution, and sealing performance. If any abnormalities are found, adjust or replace the valve promptly to ensure safe and stable operation after system startup.

The air conditioning three-way valve is a key control component in air conditioning systems, primarily used to regulate the flow of refrigerant or chilled/hot water, achieving switching between cooling and heating, and distributing chilled/hot water. It changes the fluid path through the movement of the valve core and can be operated manually or automatically with an electric actuator. Three-way valves are widely used in central air conditioning, fan coil units, underfloor heating, multi-split systems, and heat pump systems, improving system comfort, energy efficiency, and operational stability. Proper selection, correct installation, and regular maintenance are crucial for ensuring the long-term reliable operation of the three-way valve.
