What is a refrigerated dryer filter? Why is it so important?

In refrigeration and air conditioning systems, there is a key component known as the "system cleaner"—the refrigerated dryer filter (often also called a desiccant filter). Although small in size, it is a core barrier ensuring the long-term stable operation of the refrigeration unit.

What is a refrigerated dryer filter?

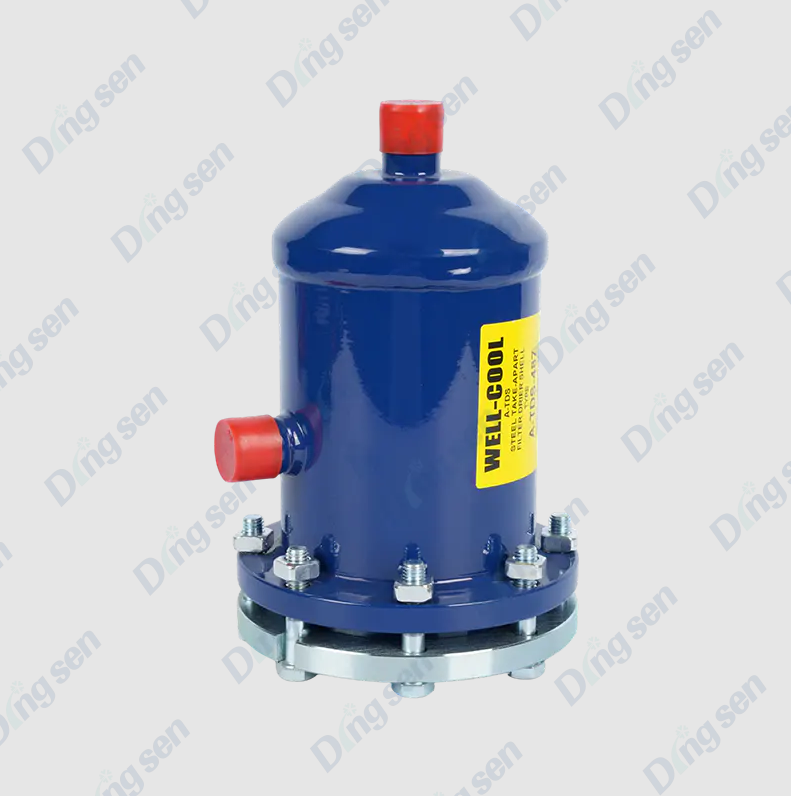

A refrigerated dryer filter is a system protection component that integrates impurity filtration and moisture absorption. It is typically installed in the liquid piping of the refrigeration system (such as after the condenser and before the expansion valve) and is specifically designed to remove harmful substances from the circulation.

This component usually consists of the following three core parts:

• Corrosion-resistant housing: Made of high-strength materials to ensure no leakage under different environments and high pressures.


• High-efficiency desiccant (molecular sieve): Used to adsorb residual moisture in the refrigerant.


• Precision filter media: Used to capture metal debris, welding slag, and oxide scale generated during system installation or operation.


Why is a refrigerated dryer filter so important?

If a refrigeration system is a delicate operation, then the refrigerated dryer filter is the purifier in the blood circulation. Its importance is reflected in the following three aspects:

1. Preventing "Ice Blockage"

If the refrigerant contains excessive moisture, when it flows through throttling mechanisms (such as expansion valves or capillary tubes), the moisture will freeze into ice crystals due to the sudden temperature drop. This can lead to pipe blockage, preventing refrigerant circulation. Refrigerated dryer filters actively absorb moisture through highly efficient desiccants, fundamentally eliminating the risk of ice blockage.

2. Preventing Chemical Corrosion and "Acidic Substances"

Moisture reacts with refrigerant and refrigeration oil at high temperatures, producing acidic substances. These acids corrode compressor coils and pipe metal. Refrigerated dryer filters ensure a dry internal environment, preventing components from being corroded by acidic substances and extending equipment lifespan.

3. Filtering Impurities and Protecting Precision Components

Fine solid particles in the refrigeration cycle (such as welding slag and copper filings) can easily wear down compressor pistons or clog expansion valve filters. The filter media of refrigerated dryer filters ensures the purity of the circulating fluid, preventing mechanical damage.

The Standard for High-Quality Filters

Not all dryer filters provide the same level of protection. A high-quality refrigerated dryer filter should possess the following characteristics:

• High moisture absorption capacity: Maintains a strong moisture capture rate even in high-temperature environments.


• Low pressure loss: Optimized internal structure ensures no significant pressure drop during fluid flow, maintaining energy efficiency.


• Rigorous testing: Undergoes rigorous pressure resistance and drying efficiency tests before leaving the factory.


• Good compatibility: Suitable for a variety of commonly used refrigerants and refrigeration oils.



Whether in commercial air conditioning, cold storage units, or precision refrigeration equipment, the refrigerated dryer filter is the first line of defense for ensuring system health. Through dual filtration and drying functions, it effectively prevents pipe blockage and component corrosion, acting as an "insurance policy" for the stable operation of the refrigeration system.
